An oscilloscope is a vital tool in the field of electronics and signal analysis, used to observe the change of an electrical signal over time. This sophisticated instrument allows engineers and technicians to visualize audio signals, digital communication parameters, and other electronic phenomena, proving invaluable in both educational and professional settings.
How Does an Oscilloscope Work?

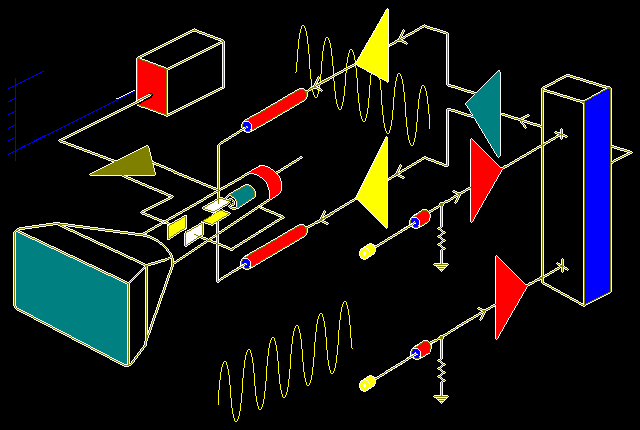

An oscilloscope functions by displaying a graph of voltage versus time on a screen. The horizontal time axis shows the progression of the signal while the vertical axis displays the voltage levels. A sweep generator provides the horizontal motion, whereas the input voltage signal is responsible for the vertical motion. These visual dynamics help professionals analyze complex waveforms effectively.
Terminology You Need to Know
Understanding oscilloscopes requires familiarity with key terms. "Waveform" refers to the shape of the signal on the screen. "Amplitude" is the signal's strength, while "frequency" is the number of times a waveform repeats per second. "Triggering" is another important term that stabilizes repetitive signals to render a steady display. Mastery of these terms is crucial for effective signal analysis.
Key Measurements and Controls
To operate an oscilloscope proficiently, one needs to understand its measurements and controls. This includes adjusting the voltage level using a "vertical control" and managing the time base using a "horizontal control." Properly setting the "trigger level" is equally important to ensure a stable and clear display without jitter or distortion.
Triggering and Acquisition
Triggering ensures the oscilloscope starts acquiring data at the right time, allowing for a synchronized display of signals. It works by setting conditions on the waveform that must be met for data acquisition to begin. This is critical for capturing one-time events or detailed examinations of signal behavior.
Probes and Accessory Use
Oscilloscope probes are essential for connecting the oscilloscope to the test circuit. Choosing the appropriate probe affects measurement accuracy and signal fidelity. This makes probe selection and maintenance pivotal in obtaining precise readings from any electrical system.
